Patch Class Reference

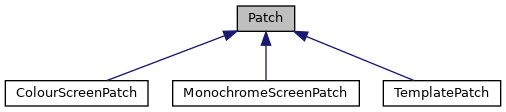

Inheritance diagram for Patch:

Public Member Functions
virtual void	buttonChanged (PatchButtonId bid, uint16_t value, uint16_t samples)
AudioBuffer *	createMemoryBuffer (int channels, int samples)
virtual void	encoderChanged (PatchParameterId pid, int16_t delta, uint16_t samples)
float	getBlockRate ()
int	getBlockSize ()
float	getElapsedBlockTime ()
int	getElapsedCycles ()
FloatParameter	getFloatParameter (const char *name, float min, float max, float defaultValue=0.0f, float lambda=0.0f, float delta=0.0, float skew=LIN)
IntParameter	getIntParameter (const char *name, int min, int max, int defaultValue=0, float lambda=0.0f, float delta=0.0, float skew=LIN)
int	getNumberOfChannels ()
FloatParameter	getParameter (const char *name, float defaultValue)
float	getParameterValue (PatchParameterId pid)
Resource *	getResource (const char *name)
	Get a resource (such as a stored FloatArray) from the firmware. More...
float	getSampleRate ()
int	getSamplesSinceButtonPressed (PatchButtonId bid)
bool	isButtonPressed (PatchButtonId bid)
	Patch ()
virtual void	processAudio (AudioBuffer &audio)=0
void	registerParameter (PatchParameterId pid, const char *name)
void	registerParameter (PatchParameterId pid, const char *name, const char *desc)
void	setButton (PatchButtonId bid, uint16_t value, uint16_t samples=0)
void	setParameterValue (PatchParameterId pid, float value)
virtual	~Patch ()

Static Public Attributes
static const float	EXP
	constant skew values for exponential, linear and logarithmic parameters More...
static const float	LIN
static const float	LOG
static const uint16_t	OFF
static const uint16_t	ON

Detailed Description

Definition at line 21 of file Patch.h.

Constructor & Destructor Documentation

Patch()

Patch::Patch

(

)

~Patch()

virtual Patch::~Patch ( )

virtual

Member Function Documentation

buttonChanged()

virtual void Patch::buttonChanged ( PatchButtonId  bid, uint16_t  value, uint16_t  samples  )

inlinevirtual

Definition at line 60 of file Patch.h.

createMemoryBuffer()

AudioBuffer* Patch::createMemoryBuffer	(	int	channels,
		int	samples
	)

encoderChanged()

virtual void Patch::encoderChanged ( PatchParameterId  pid, int16_t  delta, uint16_t  samples  )

inlinevirtual

Definition at line 59 of file Patch.h.

getBlockRate()

float Patch::getBlockRate

(

)

getBlockSize()

int Patch::getBlockSize

(

)

getElapsedBlockTime()

float Patch::getElapsedBlockTime

(

)

getElapsedCycles()

int Patch::getElapsedCycles

(

)

getFloatParameter()

FloatParameter Patch::getFloatParameter	(	const char *	name,
		float	min,
		float	max,
		float	defaultValue = 0.0f,
		float	lambda = 0.0f,
		float	delta = 0.0,
		float	skew = LIN
	)

getIntParameter()

IntParameter Patch::getIntParameter	(	const char *	name,
		int	min,
		int	max,
		int	defaultValue = 0,
		float	lambda = 0.0f,
		float	delta = 0.0,
		float	skew = LIN
	)

getNumberOfChannels()

int Patch::getNumberOfChannels

(

)

getParameter()

FloatParameter Patch::getParameter	(	const char *	name,
		float	defaultValue
	)

getParameterValue()

float Patch::getParameterValue

(

PatchParameterId

pid

)

getResource()

Resource* Patch::getResource

(

const char *

name

)

Get a resource (such as a stored FloatArray) from the firmware.

If the resource does not exist, this raises an error. If the resource exists but is not memory mapped, this will allocate new memory.

getSampleRate()

float Patch::getSampleRate

(

)

getSamplesSinceButtonPressed()

int Patch::getSamplesSinceButtonPressed

(

PatchButtonId

bid

)

isButtonPressed()

bool Patch::isButtonPressed

(

PatchButtonId

bid

)

processAudio()

virtual void Patch::processAudio ( AudioBuffer &  audio )

pure virtual

Implemented in TemplatePatch.

registerParameter() [1/2]

void Patch::registerParameter	(	PatchParameterId	pid,
		const char *	name
	)

Referenced by registerParameter(), and TemplatePatch::TemplatePatch().

registerParameter() [2/2]

void Patch::registerParameter ( PatchParameterId  pid, const char *  name, const char *  desc  )

inline

Definition at line 42 of file Patch.h.

References registerParameter().

setButton()

void Patch::setButton	(	PatchButtonId	bid,
		uint16_t	value,
		uint16_t	samples = 0
	)

setParameterValue()

void Patch::setParameterValue	(	PatchParameterId	pid,
		float	value
	)

Field Documentation

EXP

const float Patch::EXP

static

constant skew values for exponential, linear and logarithmic parameters

Definition at line 26 of file Patch.h.

LIN

const float Patch::LIN

static

Definition at line 27 of file Patch.h.

LOG

const float Patch::LOG

static

Definition at line 28 of file Patch.h.

OFF

const uint16_t Patch::OFF

static

Definition at line 30 of file Patch.h.

ON

const uint16_t Patch::ON

static

Definition at line 29 of file Patch.h.

---

The documentation for this class was generated from the following file:

• Patch.h
