OpenWareMidiControl.h File Reference

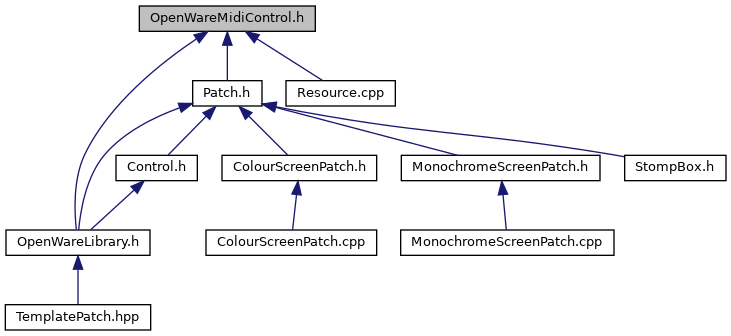

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define MIDI_SYSEX_DEVICE   0x52

#define MIDI_SYSEX_MANUFACTURER   0x7d /* Educational or development use only */

#define MIDI_SYSEX_OWL_DEVICE   0x20 /* OWL Open Ware Laboratory */

#define MIDI_SYSEX_VERSION   0x03 /* Revision */

#define SYSEX_CONFIGURATION_AUDIO_BITDEPTH   "BD"

#define SYSEX_CONFIGURATION_AUDIO_BLOCKSIZE   "BS"

#define SYSEX_CONFIGURATION_AUDIO_DATAFORMAT   "DF"

#define SYSEX_CONFIGURATION_AUDIO_RATE   "FS"

#define SYSEX_CONFIGURATION_CODEC_BYPASS   "BY"

#define SYSEX_CONFIGURATION_CODEC_OUTPUT_GAIN   "OG"

#define SYSEX_CONFIGURATION_CODEC_SWAP   "SW"

#define SYSEX_CONFIGURATION_INPUT_OFFSET   "IO"

#define SYSEX_CONFIGURATION_INPUT_SCALAR   "IS"

#define SYSEX_CONFIGURATION_MIDI_INPUT_CHANNEL   "MI"

#define SYSEX_CONFIGURATION_MIDI_OUTPUT_CHANNEL   "MO"

#define SYSEX_CONFIGURATION_OUTPUT_OFFSET   "OO"

#define SYSEX_CONFIGURATION_OUTPUT_SCALAR   "OS"

#define SYSEX_CONFIGURATION_PC_BUTTON   "PC"


Enumerations

enum  OpenWareMidiControl {
  PATCH_PARAMETER_A = 20, PATCH_PARAMETER_B = 21, PATCH_PARAMETER_C = 22, PATCH_PARAMETER_D = 23,
  PATCH_PARAMETER_E = 24, PATCH_PARAMETER_F = 1, PATCH_PARAMETER_G = 12, PATCH_PARAMETER_H = 13,
  PATCH_BUTTON = 25, PATCH_CONTROL = 26, LED = 30, LEFT_INPUT_GAIN = 32,
  RIGHT_INPUT_GAIN = 33, LEFT_OUTPUT_GAIN = 34, RIGHT_OUTPUT_GAIN = 35, LEFT_INPUT_MUTE = 36,
  RIGHT_INPUT_MUTE = 37, LEFT_OUTPUT_MUTE = 38, RIGHT_OUTPUT_MUTE = 39, BYPASS = 40,
  REQUEST_SETTINGS = 67, SAVE_SETTINGS = 68, FACTORY_RESET = 70, DEVICE_STATUS = 71,
  PATCH_PARAMETER_AA = 75, PATCH_PARAMETER_AB = 76, PATCH_PARAMETER_AC = 77, PATCH_PARAMETER_AD = 78,
  PATCH_PARAMETER_AE = 79, PATCH_PARAMETER_AF = 80, PATCH_PARAMETER_AG = 81, PATCH_PARAMETER_AH = 82,
  PATCH_PARAMETER_BA = 83, PATCH_PARAMETER_BB = 84, PATCH_PARAMETER_BC = 85, PATCH_PARAMETER_BD = 86,
  PATCH_PARAMETER_BE = 87, PATCH_PARAMETER_BF = 88, PATCH_PARAMETER_BG = 89, PATCH_PARAMETER_BH = 90,
  PATCH_PARAMETER_CA = 91, PATCH_PARAMETER_CB = 92, PATCH_PARAMETER_CC = 93, PATCH_PARAMETER_CD = 94,
  PATCH_PARAMETER_CE = 95, PATCH_PARAMETER_CF = 96, PATCH_PARAMETER_CG = 97, PATCH_PARAMETER_CH = 98,
  PATCH_PARAMETER_DA = 99, PATCH_PARAMETER_DB = 100, PATCH_PARAMETER_DC = 101, PATCH_PARAMETER_DD = 102,
  PATCH_PARAMETER_DE = 103, PATCH_PARAMETER_DF = 104, PATCH_PARAMETER_DG = 105, PATCH_PARAMETER_DH = 106
}

enum  OpenWareMidiSysexCommand {
  SYSEX_PRESET_NAME_COMMAND = 0x01, SYSEX_PARAMETER_NAME_COMMAND = 0x02, SYSEX_CONFIGURATION_COMMAND = 0x03, SYSEX_BOOTLOADER_COMMAND = 0x7e,
  SYSEX_FIRMWARE_UPLOAD = 0x10, SYSEX_FIRMWARE_STORE = 0x11, SYSEX_FIRMWARE_RUN = 0x12, SYSEX_FIRMWARE_FLASH = 0x13,
  SYSEX_FLASH_ERASE = 0x14, SYSEX_FIRMWARE_VERSION = 0x20, SYSEX_DEVICE_ID = 0x21, SYSEX_PROGRAM_MESSAGE = 0x22,
  SYSEX_DEVICE_STATS = 0x23, SYSEX_PROGRAM_STATS = 0x24
}

enum  PatchButtonId {
  BYPASS_BUTTON, PUSHBUTTON, GREEN_BUTTON, RED_BUTTON,
  BUTTON_A, BUTTON_B, BUTTON_C, BUTTON_D,
  BUTTON_E, BUTTON_F, BUTTON_G, BUTTON_H,
  GATE_BUTTON = 0x7f, MIDI_NOTE_BUTTON = 0x80
}

enum  PatchParameterId {
  PARAMETER_A, PARAMETER_B, PARAMETER_C, PARAMETER_D,
  PARAMETER_E, PARAMETER_F, PARAMETER_G, PARAMETER_H,
  PARAMETER_AA, PARAMETER_AB, PARAMETER_AC, PARAMETER_AD,
  PARAMETER_AE, PARAMETER_AF, PARAMETER_AG, PARAMETER_AH,
  PARAMETER_BA, PARAMETER_BB, PARAMETER_BC, PARAMETER_BD,
  PARAMETER_BE, PARAMETER_BF, PARAMETER_BG, PARAMETER_BH,
  PARAMETER_CA, PARAMETER_CB, PARAMETER_CC, PARAMETER_CD,
  PARAMETER_CE, PARAMETER_CF, PARAMETER_CG, PARAMETER_CH,
  PARAMETER_DA, PARAMETER_DB, PARAMETER_DC, PARAMETER_DD,
  PARAMETER_DE, PARAMETER_DF, PARAMETER_DG, PARAMETER_DH,
  PARAMETER_FREQ, PARAMETER_GAIN
}


Macro Definition Documentation

#define MIDI_SYSEX_DEVICE   0x52

Definition at line 5 of file OpenWareMidiControl.h.

#define MIDI_SYSEX_MANUFACTURER   0x7d /* Educational or development use only */

Definition at line 4 of file OpenWareMidiControl.h.

#define MIDI_SYSEX_OWL_DEVICE   0x20 /* OWL Open Ware Laboratory */

Definition at line 6 of file OpenWareMidiControl.h.

#define MIDI_SYSEX_VERSION   0x03 /* Revision */

Definition at line 7 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_AUDIO_BITDEPTH   "BD"

Definition at line 78 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_AUDIO_BLOCKSIZE   "BS"

Definition at line 80 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_AUDIO_DATAFORMAT   "DF"

Definition at line 79 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_AUDIO_RATE   "FS"

Definition at line 77 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_CODEC_BYPASS   "BY"

Definition at line 82 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_CODEC_OUTPUT_GAIN   "OG"

Definition at line 83 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_CODEC_SWAP   "SW"

Definition at line 81 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_INPUT_OFFSET   "IO"

Definition at line 85 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_INPUT_SCALAR   "IS"

Definition at line 86 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_MIDI_INPUT_CHANNEL   "MI"

Definition at line 89 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_MIDI_OUTPUT_CHANNEL   "MO"

Definition at line 90 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_OUTPUT_OFFSET   "OO"

Definition at line 87 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_OUTPUT_SCALAR   "OS"

Definition at line 88 of file OpenWareMidiControl.h.

#define SYSEX_CONFIGURATION_PC_BUTTON   "PC"

Definition at line 84 of file OpenWareMidiControl.h.

Enumeration Type Documentation

Enumerator
PATCH_PARAMETER_A
PATCH_PARAMETER_B
PATCH_PARAMETER_C
PATCH_PARAMETER_D
PATCH_PARAMETER_E
PATCH_PARAMETER_F
PATCH_PARAMETER_G
PATCH_PARAMETER_H
PATCH_BUTTON
PATCH_CONTROL
LED
LEFT_INPUT_GAIN
RIGHT_INPUT_GAIN
LEFT_OUTPUT_GAIN
RIGHT_OUTPUT_GAIN
LEFT_INPUT_MUTE
RIGHT_INPUT_MUTE
LEFT_OUTPUT_MUTE
RIGHT_OUTPUT_MUTE
BYPASS
REQUEST_SETTINGS
SAVE_SETTINGS
FACTORY_RESET
DEVICE_STATUS
PATCH_PARAMETER_AA
PATCH_PARAMETER_AB
PATCH_PARAMETER_AC
PATCH_PARAMETER_AD
PATCH_PARAMETER_AE
PATCH_PARAMETER_AF
PATCH_PARAMETER_AG
PATCH_PARAMETER_AH
PATCH_PARAMETER_BA
PATCH_PARAMETER_BB
PATCH_PARAMETER_BC
PATCH_PARAMETER_BD
PATCH_PARAMETER_BE
PATCH_PARAMETER_BF
PATCH_PARAMETER_BG
PATCH_PARAMETER_BH
PATCH_PARAMETER_CA
PATCH_PARAMETER_CB
PATCH_PARAMETER_CC
PATCH_PARAMETER_CD
PATCH_PARAMETER_CE
PATCH_PARAMETER_CF
PATCH_PARAMETER_CG
PATCH_PARAMETER_CH
PATCH_PARAMETER_DA
PATCH_PARAMETER_DB
PATCH_PARAMETER_DC
PATCH_PARAMETER_DD
PATCH_PARAMETER_DE
PATCH_PARAMETER_DF
PATCH_PARAMETER_DG
PATCH_PARAMETER_DH

Definition at line 112 of file OpenWareMidiControl.h.

Enumerator
SYSEX_PRESET_NAME_COMMAND
SYSEX_PARAMETER_NAME_COMMAND
SYSEX_CONFIGURATION_COMMAND
SYSEX_BOOTLOADER_COMMAND
SYSEX_FIRMWARE_UPLOAD
SYSEX_FIRMWARE_STORE
SYSEX_FIRMWARE_RUN
SYSEX_FIRMWARE_FLASH
SYSEX_FLASH_ERASE
SYSEX_FIRMWARE_VERSION
SYSEX_DEVICE_ID
SYSEX_PROGRAM_MESSAGE
SYSEX_DEVICE_STATS
SYSEX_PROGRAM_STATS

Definition at line 92 of file OpenWareMidiControl.h.

Enumerator
BYPASS_BUTTON
PUSHBUTTON
GREEN_BUTTON
RED_BUTTON
BUTTON_A
BUTTON_B
BUTTON_C
BUTTON_D
BUTTON_E
BUTTON_F
BUTTON_G
BUTTON_H
GATE_BUTTON
MIDI_NOTE_BUTTON

Definition at line 59 of file OpenWareMidiControl.h.

Enumerator
PARAMETER_A
PARAMETER_B
PARAMETER_C
PARAMETER_D
PARAMETER_E
PARAMETER_F
PARAMETER_G
PARAMETER_H
PARAMETER_AA
PARAMETER_AB
PARAMETER_AC
PARAMETER_AD
PARAMETER_AE
PARAMETER_AF
PARAMETER_AG
PARAMETER_AH
PARAMETER_BA
PARAMETER_BB
PARAMETER_BC
PARAMETER_BD
PARAMETER_BE
PARAMETER_BF
PARAMETER_BG
PARAMETER_BH
PARAMETER_CA
PARAMETER_CB
PARAMETER_CC
PARAMETER_CD
PARAMETER_CE
PARAMETER_CF
PARAMETER_CG
PARAMETER_CH
PARAMETER_DA
PARAMETER_DB
PARAMETER_DC
PARAMETER_DD
PARAMETER_DE
PARAMETER_DF
PARAMETER_DG
PARAMETER_DH
PARAMETER_FREQ
PARAMETER_GAIN

Definition at line 9 of file OpenWareMidiControl.h.
