basicmaths.h File Reference

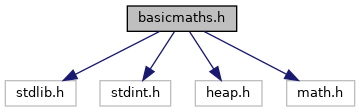

Include dependency graph for basicmaths.h:

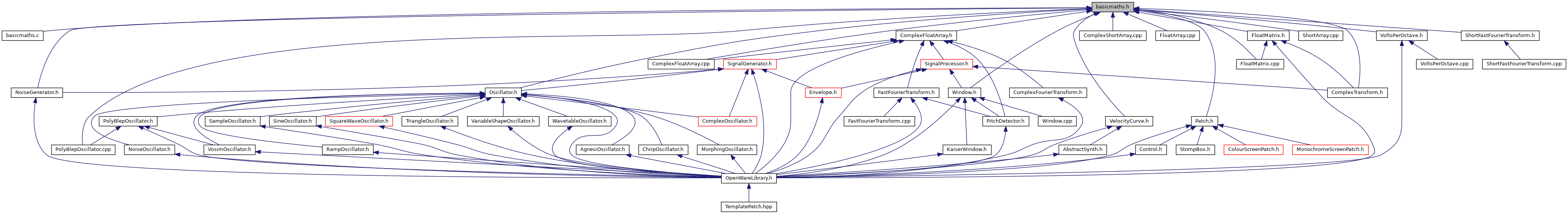

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define _USE_MATH_DEFINES

#define abs(x)   ((x)>0?(x):-(x))

#define calloc(x, y)   pvPortCalloc(x, y)

#define free(x)   vPortFree(x)

#define M_PI   3.14159265358979323846

#define M_SQRT2   1.41421356237309504880

#define malloc(x)   pvPortMalloc(x)

#define max(a, b)   ((a)>(b)?(a):(b))

#define min(a, b)   ((a)<(b)?(a):(b))

#define realloc(x, y)   pvPortRealloc(x, y);


Functions

uint32_t arm_rand32 ()
 Generate an unsigned 32bit pseudo-random number using xorshifter algorithm. More...

float arm_sqrtf (float in)

void arm_srand32 (uint32_t s)

float fast_atan2f (float a, float b)

float fast_exp10f (float x)

float fast_exp2f (float x)

float fast_expf (float x)

float fast_log10f (float x)

float fast_log2f (float x)

uint32_t fast_log2i (uint32_t x)

void fast_log_set_table (const float *table, int size)

float fast_logf (float x)

void fast_pow_set_table (const uint32_t *table, int size)

float fast_powf (float x, float y)

static uint32_t log2i (const uint32_t x)

void * pvPortCalloc (size_t nmemb, size_t size)

void * pvPortRealloc (void *pv, size_t xWantedSize)

float randf ()
 generate a random number between 0 and 1 More...


Macro Definition Documentation

#define _USE_MATH_DEFINES

Definition at line 8 of file basicmaths.h.

#define abs (   x)    ((x)>0?(x):-(x))

Definition at line 47 of file basicmaths.h.

Referenced by ShortArray::noise(), and StiffValue< T >::update().

#define calloc (   x,

)    pvPortCalloc(x, y)

Definition at line 85 of file basicmaths.h.

#define free (   x)    vPortFree(x)

Definition at line 86 of file basicmaths.h.

#define M_SQRT2   1.41421356237309504880

Definition at line 38 of file basicmaths.h.

Referenced by FilterStage::setHighShelf(), and FilterStage::setLowShelf().

#define malloc (   x)    pvPortMalloc(x)

Definition at line 84 of file basicmaths.h.

#define max (   a,

)    ((a)>(b)?(a):(b))
#define realloc (   x,

)    pvPortRealloc(x, y);

Definition at line 87 of file basicmaths.h.

Function Documentation

uint32_t arm_rand32 ( )

Generate an unsigned 32bit pseudo-random number using xorshifter algorithm.

Aka xorshifter32. "Anyone who considers arithmetical methods of producing random digits is, of course, in a state of sin." – John von Neumann.

Definition at line 42 of file basicmaths.c.

References r32seed.

Referenced by WhiteNoiseOscillator::getNextSample(), and randf().

float arm_sqrtf ( float  in)

Definition at line 53 of file basicmaths.c.

void arm_srand32 ( uint32_t  s)

Definition at line 33 of file basicmaths.c.

References r32seed.

float fast_atan2f ( float  a,
float  b
)

Definition at line 66 of file basicmaths.c.

References M_PI.

float fast_exp10f ( float  x)

Definition at line 108 of file basicmaths.c.

References M_LOG210, pow_precision, pow_table, and powFastLookup().

float fast_exp2f ( float  x)

Definition at line 104 of file basicmaths.c.

References pow_precision, pow_table, and powFastLookup().

float fast_expf ( float  x)

Definition at line 100 of file basicmaths.c.

References pow_precision, pow_table, and powFastLookup().

float fast_log10f ( float  x)

Definition at line 116 of file basicmaths.c.

References icsi_log(), log_precision, and log_table.

float fast_log2f ( float  x)

Definition at line 121 of file basicmaths.c.

References icsi_log(), log_precision, and log_table.

uint32_t fast_log2i ( uint32_t  x)

Definition at line 136 of file basicmaths.c.

void fast_log_set_table ( const float *  table,
int  size
)

Definition at line 131 of file basicmaths.c.

References log2i(), log_precision, and log_table.

float fast_logf ( float  x)

Definition at line 112 of file basicmaths.c.

References icsi_log(), log_precision, and log_table.

void fast_pow_set_table ( const uint32_t *  table,
int  size
)

Definition at line 126 of file basicmaths.c.

References log2i(), pow_precision, and pow_table.

float fast_powf ( float  x,
float  y
)

Definition at line 96 of file basicmaths.c.

References pow_precision, pow_table, and powFastLookup().

static uint32_t log2i ( const uint32_t  x)
inlinestatic

Definition at line 79 of file basicmaths.h.

Referenced by fast_log_set_table(), and fast_pow_set_table().

void* pvPortCalloc ( size_t  nmemb,
size_t  size
)

Definition at line 15 of file basicmaths.c.

void* pvPortRealloc ( void *  pv,
size_t  xWantedSize
)

Definition at line 7 of file basicmaths.c.

float randf ( )

generate a random number between 0 and 1

Definition at line 49 of file basicmaths.c.

References arm_rand32().
