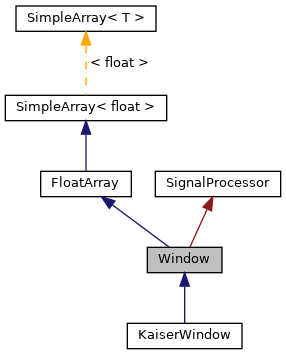

Inheritance diagram for Window:

[legend]

Collaboration diagram for Window:

[legend]

Public Types
enum	WindowType { HammingWindow , HannWindow , HanningWindow , TriangularWindow , RectangularWindow , WelchWindow , SineWindow }

typedef enum Window::WindowType	WindowType

Public Member Functions
void	add (float scalar)
	In-place array-scalar addition. More...

void	add (float scalar, FloatArray destination)
	Array-scalar addition. More...

void	add (FloatArray operand2)
	Element-wise sum between arrays. More...

void	add (FloatArray operand2, FloatArray destination)
	Element-wise sum between arrays. More...

void	apply (float *signalIn)

void	apply (float signalIn, float signalOut)

void	clear ()
	Clear the array. More...

void	clip ()
	Clips the elements in the array in the range [-1, 1]. More...

void	clip (float min, float max)
	Clips the elements in the array in the range [min, max]. More...

void	clip (float range)
	Clips the elements in the array in the range [-range, range]. More...

void	convolve (FloatArray operand2, FloatArray destination)
	Convolution between arrays. More...

void	convolve (FloatArray operand2, FloatArray destination, int offset, size_t samples)
	Partial convolution between arrays. More...

void	copyFrom (SimpleArray< float > source)
	Copies the content of another array into this array. More...

void	copyTo (SimpleArray< float > destination)
	Copies the content of this array to another array. More...

void	correlate (FloatArray operand2, FloatArray destination)
	Correlation between arrays. More...

void	correlateInitialized (FloatArray operand2, FloatArray destination)
	Correlation between arrays. More...

void	decibelToGain (FloatArray destination)
	Convert decibel to gains values: gain = 10^(dB/20) -6dB = 0.5, 0dB = 1.0, +6dB = 2.0. More...

bool	equals (const SimpleArray< float > &other) const
	Compares two arrays. More...

void	gainToDecibel (FloatArray destination)
	Convert gains to decibel values: dB = log10(gain)*20 Gain 0.5 = -6dB, 1.0 = 0dB, 2.0 = +6dB. More...

float *	getData ()
	Get the data stored in the Array. More...

float	getElement (size_t index)
	Get a single value stored in the array. More...

void	getMax (float value, int index)
	Get the maximum value in the array and its index. More...

int	getMaxIndex ()
	Get the index of the maximum value in the array. More...

float	getMaxValue ()
	Get the maximum value in the array. More...

float	getMean ()
	Mean of the array. More...

void	getMin (float value, int index)
	Get the minimum value in the array and its index. More...

int	getMinIndex ()
	Get the index of the minimum value in the array. More...

float	getMinValue ()
	Get the minimum value in the array. More...

float	getPower ()
	Power of the array. More...

float	getRms ()
	Root mean square value of the array. More...

size_t	getSize () const

float	getStandardDeviation ()
	Standard deviation of the array. More...

float	getSum ()
	Sum of the array. More...

float	getVariance ()
	Variance of the array. More...

void	insert (SimpleArray< float > source, int destinationOffset, size_t len)
	Copies the content of an array into a subset of the array. More...

void	insert (SimpleArray< float > source, int sourceOffset, int destinationOffset, size_t len)
	Copies the content of an array into a subset of the array. More...

bool	isEmpty () const

void	move (int fromIndex, int toIndex, size_t len)
	Copies values within an array. More...

void	multiply (float scalar)
	Array-scalar multiplication. More...

void	multiply (float scalar, FloatArray destination)
	Array-scalar multiplication. More...

void	multiply (FloatArray operand2)
	Element-wise multiplication between arrays. More...

void	multiply (FloatArray operand2, FloatArray destination)
	Element-wise multiplication between arrays. More...

void	negate ()
	Negate the array. More...

void	negate (FloatArray &destination)
	Negate the array. More...

void	noise ()
	Random values Fills the array with random values in the range [-1, 1) More...

void	noise (float min, float max)
	Random values in range. More...

	operator float * ()
	Casting operator to T*. More...

float	process (float input)

void	process (FloatArray input, FloatArray output)

void	ramp (float from, float to)
	Create a linear ramp from one value to another. More...

void	reciprocal ()
	Reciprocal of the array, in-place version. More...

void	reciprocal (FloatArray &destination)
	Reciprocal of the array. More...

void	rectify ()
	Absolute value of the array, in-place version. More...

void	rectify (FloatArray &destination)
	Absolute value of the array. More...

void	reverse ()
	Reverse the array. More...

void	reverse (FloatArray &destination)
	Reverse the array Copies the elements of the array in reversed order into destination. More...

void	scale (float from, float to)
	In-place scale. More...

void	scale (float from, float to, FloatArray destination)
	Scale all values along a linear ramp from one value to another. More...

void	setAll (float value)
	Set all the values in the array. More...

void	setElement (size_t index, float value)
	Set a single value in the array. More...

void	softclip ()
	Applies a cubic soft-clip algorithm to all elements in the array which limits them to the range [-1, 1] In-place version. More...

void	softclip (FloatArray destination)
	Applies a cubic soft-clip algorithm to all elements in the array which limits them to the range [-1, 1]. More...

FloatArray	subArray (int offset, size_t length)
	A subset of the array. More...

void	subtract (float scalar)
	Array-scalar subtraction. More...

void	subtract (FloatArray operand2)
	Element-wise difference between arrays. More...

void	subtract (FloatArray operand2, FloatArray destination)
	Element-wise difference between arrays. More...

void	tanh ()
	In-place tanh. More...

void	tanh (FloatArray destination)
	Apply tanh to each element in the array. More...

	Window ()

	Window (float *win, int size)

Static Public Member Functions
static void	applyTriangularWindow (float *signal, int size)

static void	applyTriangularWindow (float signalIn, float signalOut, int size)

static void	applyWindow (float signal, float window, int size)

static void	applyWindow (float signalIn, float window, float *signalOut, int size)

static void	copy (float dst, float src, size_t len)
	Optimised array copy for datatype T. More...

static Window	create (int size)

static Window	create (WindowType type, int size)

static void	destroy (FloatArray array)
	Destroys a FloatArray created with the create() method. More...

static void	hamming (float *window, int size)

static void	hann (float *window, int size)

static void	rectangular (float *window, int size)

static void	sine (float *window, int size)

static void	triangular (float *window, int size)

static void	welch (float *window, int size)

static void	window (WindowType type, float *window, int size)

Protected Attributes
float *	data

size_t	size

Detailed Description

Definition at line 20 of file Window.h.

Member Typedef Documentation

◆ WindowType

typedef enum Window::WindowType Window::WindowType

Member Enumeration Documentation

◆ WindowType

enum Window::WindowType

Enumerator
HammingWindow
HannWindow
HanningWindow
TriangularWindow
RectangularWindow
WelchWindow
SineWindow

Definition at line 24 of file Window.h.

Constructor & Destructor Documentation

◆ Window() [1/2]

Window::Window ( )

inline

Definition at line 33 of file Window.h.

◆ Window() [2/2]

Window::Window	(	float *	win,
		int	size
	)

inline

Definition at line 34 of file Window.h.

Member Function Documentation

◆ add() [1/4]

void FloatArray::add ( float scalar )

inherited

In-place array-scalar addition.

Adds scalar to each value in the array

Parameters

[in] scalar value to be added to the array

Definition at line 252 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ add() [2/4]

void FloatArray::add	(	float	scalar,
		FloatArray	destination
	)

inherited

Array-scalar addition.

Adds scalar to each value in the array and put the result in destination

Parameters

[in]	scalar	value to be added to the array
[out]	destination	the destination array

Definition at line 258 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ add() [3/4]

void FloatArray::add ( FloatArray operand2 )

inherited

Element-wise sum between arrays.

Adds each element of operand2 to the corresponding element in the array.

Parameters

operand2 second operand for the sum

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 247 of file FloatArray.cpp.

References FloatArray::add().

◆ add() [4/4]

void FloatArray::add	(	FloatArray	operand2,
		FloatArray	destination
	)

inherited

Element-wise sum between arrays.

Sets each element in destination to the sum of the corresponding element of the array and operand2

Parameters

[in]	operand2	second operand for the sum
[out]	destination	the destination array

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 231 of file FloatArray.cpp.

References ASSERT, SimpleArray< T >::data, SimpleArray< float >::data, SimpleArray< float >::size, and SimpleArray< T >::size.

Referenced by AudioBuffer::add(), FloatArray::add(), CrossFadingCircularBuffer< T >::delay(), MorphingOscillator::generate(), VoiceAllocatorSignalGenerator< Allocator, SynthVoice, VOICES >::generate(), PolyBlepOscillator::generate(), StereoFeedbackProcessor::process(), PingPongFeedbackProcessor::process(), DryWetSignalProcessor< Processor >::process(), FeedbackSignalProcessor< Processor >::process(), and VoiceAllocatorSignalProcessor< Allocator, SynthVoice, VOICES >::process().

◆ apply() [1/2]

void Window::apply ( float * signalIn )

inline

Definition at line 35 of file Window.h.

References applyWindow(), SimpleArray< float >::getData(), and SimpleArray< float >::getSize().

◆ apply() [2/2]

void Window::apply	(	float *	signalIn,
		float *	signalOut
	)

inline

Definition at line 38 of file Window.h.

References applyWindow(), SimpleArray< float >::getData(), and SimpleArray< float >::getSize().

◆ applyTriangularWindow() [1/2]

static void Window::applyTriangularWindow	(	float *	signal,
		int	size
	)

inlinestatic

Definition at line 120 of file Window.h.

References SimpleArray< float >::size.

◆ applyTriangularWindow() [2/2]

static void Window::applyTriangularWindow	(	float *	signalIn,
		float *	signalOut,
		int	size
	)

inlinestatic

Definition at line 123 of file Window.h.

References FloatArray::ramp(), and SimpleArray< float >::size.

◆ applyWindow() [1/2]

static void Window::applyWindow	(	float *	signal,
		float *	window,
		int	size
	)

inlinestatic

Definition at line 136 of file Window.h.

References SimpleArray< float >::size, and window().

Referenced by apply(), and process().

◆ applyWindow() [2/2]

void Window::applyWindow	(	float *	signalIn,
		float *	window,
		float *	signalOut,
		int	size
	)

static

Definition at line 3 of file Window.cpp.

References SimpleArray< float >::size, and window().

◆ clear()

void FloatArray::clear ( )

inlineinherited

Clear the array.

Set all the values in the array to 0.

Definition at line 29 of file FloatArray.h.

References FloatArray::setAll().

Referenced by FloatArray::create(), FirFilter::create(), UpSampler::process(), and SimpleMovingAverage::reset().

◆ clip() [1/3]

void FloatArray::clip ( )

inherited

Clips the elements in the array in the range [-1, 1].

Definition at line 193 of file FloatArray.cpp.

◆ clip() [2/3]

void FloatArray::clip	(	float	min,
		float	max
	)

inherited

Clips the elements in the array in the range [min, max].

Parameters

min	minimum value
max	maximum value

Definition at line 206 of file FloatArray.cpp.

References SimpleArray< float >::data, max, min, and SimpleArray< float >::size.

◆ clip() [3/3]

void FloatArray::clip ( float range )

inherited

Clips the elements in the array in the range [-**range**, range].

Parameters

range clipping value.

Definition at line 197 of file FloatArray.cpp.

References SimpleArray< float >::data, max, and SimpleArray< float >::size.

◆ convolve() [1/2]

void FloatArray::convolve	(	FloatArray	operand2,
		FloatArray	destination
	)

inherited

Convolution between arrays.

Sets destination to the result of the convolution between the array and operand2

Parameters

[in]	operand2	the second operand for the convolution
[out]	destination	array. It must have a minimum size of this+other-1.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 352 of file FloatArray.cpp.

References ASSERT, SimpleArray< T >::data, SimpleArray< float >::data, SimpleArray< T >::getSize(), SimpleArray< float >::size, and SimpleArray< T >::size.

Referenced by FloatArray::correlateInitialized().

◆ convolve() [2/2]

void FloatArray::convolve	(	FloatArray	operand2,
		FloatArray	destination,
		int	offset,
		size_t	samples
	)

inherited

Partial convolution between arrays.

Perform partial convolution: start at offset and compute samples values.

Parameters

[in]	operand2	the second operand for the convolution.
[out]	destination	the destination array.
[in]	offset	first output sample to compute
[in]	samples	number of samples to compute

Remarks: destination[n] is left unchanged for n<offset and the result is stored from destination[offset] onwards that is, in the same position where they would be if a full convolution was performed.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 370 of file FloatArray.cpp.

References ASSERT, SimpleArray< T >::data, SimpleArray< float >::data, SimpleArray< T >::getData(), SimpleArray< T >::getSize(), SimpleArray< float >::size, and SimpleArray< T >::size.

◆ copy()

static void SimpleArray< float >::copy	(	T *	dst,
		T *	src,
		size_t	len
	)

inlinestaticinherited

Optimised array copy for datatype T.

Copy four at a time to minimise loop overheads and allow SIMD optimisations. This performs well on external RAM but is slower on internal memory compared to memcpy.

Definition at line 134 of file SimpleArray.h.

◆ copyFrom()

void SimpleArray< float >::copyFrom ( SimpleArray< T > source )

inlineinherited

Copies the content of another array into this array.

This array needs to be at least as big as the other array.

Parameters

[in] source the source array

Definition at line 86 of file SimpleArray.h.

◆ copyTo()

void SimpleArray< float >::copyTo ( SimpleArray< T > destination )

inlineinherited

Copies the content of this array to another array.

The other array needs to be at least as big as this array.

Parameters

[out] destination the destination array

Definition at line 76 of file SimpleArray.h.

◆ correlate()

void FloatArray::correlate	(	FloatArray	operand2,
		FloatArray	destination
	)

inherited

Correlation between arrays.

Sets destination to the correlation of the array and operand2.

Parameters

[in]	operand2	the second operand for the correlation
[out]	destination	the destination array. It must have a minimum size of 2*max(srcALen, srcBLen)-1

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 398 of file FloatArray.cpp.

References FloatArray::correlateInitialized(), and FloatArray::setAll().

◆ correlateInitialized()

void FloatArray::correlateInitialized	(	FloatArray	operand2,
		FloatArray	destination
	)

inherited

Correlation between arrays.

Sets destination to the correlation of this array and operand2.

Parameters

[in]	operand2	the second operand for the correlation
[out]	destination	array. It must have a minimum size of 2*max(srcALen, srcBLen)-1

Remarks: It is the same as correlate(), but destination must have been initialized to 0 in advance.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 404 of file FloatArray.cpp.

References ASSERT, FloatArray::convolve(), SimpleArray< T >::data, SimpleArray< float >::data, FloatArray::reverse(), SimpleArray< float >::size, and SimpleArray< T >::size.

Referenced by FloatArray::correlate().

◆ create() [1/2]

static Window Window::create ( int size )

inlinestatic

Definition at line 55 of file Window.h.

References SimpleArray< float >::size.

◆ create() [2/2]

static Window Window::create	(	WindowType	type,
		int	size
	)

inlinestatic

Definition at line 50 of file Window.h.

References SimpleArray< float >::size, and window().

Referenced by FourierPitchDetector::init().

◆ decibelToGain()

void FloatArray::decibelToGain ( FloatArray destination )

inherited

Convert decibel to gains values: gain = 10^(dB/20) -6dB = 0.5, 0dB = 1.0, +6dB = 2.0.

Definition at line 426 of file FloatArray.cpp.

References ASSERT, SimpleArray< float >::data, SimpleArray< T >::getSize(), and SimpleArray< float >::size.

◆ destroy()

void FloatArray::destroy ( FloatArray array )

staticinherited

Destroys a FloatArray created with the create() method.

Parameters

array the FloatArray to be destroyed.

Remarks: the FloatArray object passed as an argument should not be used again after invoking this method.; a FloatArray object that has not been created by the FloatArray::create() method might cause an exception if passed as an argument to this method.

Definition at line 472 of file FloatArray.cpp.

References SimpleArray< T >::data.

Referenced by CrossFadingCircularBuffer< T >::destroy(), DryWetSignalProcessor< Processor >::destroy(), FeedbackSignalProcessor< Processor >::destroy(), FirFilter::destroy(), GaussianNoiseGenerator::destroy(), InterpolatingWavetableOscillator< im >::destroy(), KaiserWindow::destroy(), MorphingOscillator::destroy(), VoiceAllocatorSignalGenerator< Allocator, SynthVoice, VOICES >::destroy(), VoiceAllocatorSignalProcessor< Allocator, SynthVoice, VOICES >::destroy(), PingPongFeedbackProcessor::destroy(), SimpleMovingAverage::destroy(), StereoFeedbackProcessor::destroy(), FourierPitchDetector::~FourierPitchDetector(), and ZeroCrossingPitchDetector::~ZeroCrossingPitchDetector().

◆ equals()

bool SimpleArray< float >::equals ( const SimpleArray< T > & other ) const

inlineinherited

Compares two arrays.

Performs an element-wise comparison of the values contained in the arrays.

Parameters

other the array to compare against.

Returns: true if the arrays have the same size and the value of each of the elements of the one match the value of the corresponding element of the other, or false otherwise.

Definition at line 61 of file SimpleArray.h.

◆ gainToDecibel()

void FloatArray::gainToDecibel ( FloatArray destination )

inherited

Convert gains to decibel values: dB = log10(gain)*20 Gain 0.5 = -6dB, 1.0 = 0dB, 2.0 = +6dB.

Definition at line 420 of file FloatArray.cpp.

References ASSERT, SimpleArray< float >::data, SimpleArray< T >::getSize(), and SimpleArray< float >::size.

◆ getData()

float * SimpleArray< float >::getData ( )

inlineinherited

Get the data stored in the Array.

Returns: a T* pointer to the data stored in the Array

Definition at line 27 of file SimpleArray.h.

◆ getElement()

float SimpleArray< float >::getElement ( size_t index )

inlineinherited

Get a single value stored in the array.

Returns: the value stored at index

Parameters

index

Definition at line 43 of file SimpleArray.h.

◆ getMax()

void FloatArray::getMax	(	float *	value,
		int *	index
	)

inherited

Get the maximum value in the array and its index.

Parameters

[out]	value	will be set to the maximum value after the call
[out]	index	will be set to the index of the maximum value after the call

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 41 of file FloatArray.cpp.

References ASSERT, SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by FloatArray::getMaxIndex(), and FloatArray::getMaxValue().

◆ getMaxIndex()

int FloatArray::getMaxIndex ( )

inherited

Get the index of the maximum value in the array.

Returns: the maximum value contained in the array

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 69 of file FloatArray.cpp.

References FloatArray::getMax().

Referenced by FourierPitchDetector::computeFrequency().

◆ getMaxValue()

float FloatArray::getMaxValue ( )

inherited

Get the maximum value in the array.

Returns: the maximum value contained in the array

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 61 of file FloatArray.cpp.

References FloatArray::getMax().

◆ getMean()

float FloatArray::getMean ( )

inherited

Mean of the array.

Gets the mean (or average) of the values in the array.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 136 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by ZeroCrossingPitchDetector::getFrequency().

◆ getMin()

void FloatArray::getMin	(	float *	value,
		int *	index
	)

inherited

Get the minimum value in the array and its index.

Parameters

[out]	value	will be set to the minimum value after the call
[out]	index	will be set to the index of the minimum value after the call

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 6 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by FloatArray::getMinIndex(), and FloatArray::getMinValue().

◆ getMinIndex()

int FloatArray::getMinIndex ( )

inherited

Get the index of the minimum value in the array.

Returns: the mimimum value contained in the array

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 33 of file FloatArray.cpp.

References FloatArray::getMin().

◆ getMinValue()

float FloatArray::getMinValue ( )

inherited

Get the minimum value in the array.

Returns: the minimum value contained in the array

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 25 of file FloatArray.cpp.

References FloatArray::getMin().

◆ getPower()

float FloatArray::getPower ( )

inherited

Power of the array.

Gets the power of the values in the array.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 151 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by FloatArray::getVariance().

◆ getRms()

float FloatArray::getRms ( )

inherited

Root mean square value of the array.

Gets the root mean square of the values in the array.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 113 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ getSize()

size_t SimpleArray< float >::getSize ( ) const

inlineinherited

Definition at line 31 of file SimpleArray.h.

◆ getStandardDeviation()

float FloatArray::getStandardDeviation ( )

inherited

Standard deviation of the array.

Gets the standard deviation of the values in the array.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 166 of file FloatArray.cpp.

References SimpleArray< float >::data, FloatArray::getVariance(), and SimpleArray< float >::size.

◆ getSum()

float FloatArray::getSum ( )

inherited

Sum of the array.

Gets the sum of the values in the array.

Definition at line 129 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ getVariance()

float FloatArray::getVariance ( )

inherited

Variance of the array.

Gets the variance of the values in the array.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 177 of file FloatArray.cpp.

References SimpleArray< float >::data, FloatArray::getPower(), and SimpleArray< float >::size.

Referenced by FloatArray::getStandardDeviation().

◆ hamming()

static void Window::hamming	(	float *	window,
		int	size
	)

inlinestatic

Definition at line 91 of file Window.h.

References M_PI, SimpleArray< float >::size, and window().

Referenced by window().

◆ hann()

static void Window::hann	(	float *	window,
		int	size
	)

inlinestatic

Definition at line 87 of file Window.h.

References M_PI, SimpleArray< float >::size, and window().

Referenced by window().

◆ insert() [1/2]

void SimpleArray< float >::insert	(	SimpleArray< T >	source,
		int	destinationOffset,
		size_t	len
	)

inlineinherited

Copies the content of an array into a subset of the array.

Copies len elements from source to destinationOffset in the current array.

Parameters

[in]	source	the source array
[in]	destinationOffset	the offset into the destination array
[in]	len	the number of samples to copy

Definition at line 99 of file SimpleArray.h.

◆ insert() [2/2]

void SimpleArray< float >::insert	(	SimpleArray< T >	source,
		int	sourceOffset,
		int	destinationOffset,
		size_t	len
	)

inlineinherited

Copies the content of an array into a subset of the array.

Copies len elements starting from sourceOffset of source to destinationOffset in the current array.

Parameters

[in]	source	the source array
[in]	sourceOffset	the offset into the source array
[in]	destinationOffset	the offset into the destination array
[in]	len	the number of samples to copy

Definition at line 111 of file SimpleArray.h.

◆ isEmpty()

bool SimpleArray< float >::isEmpty ( ) const

inlineinherited

Definition at line 35 of file SimpleArray.h.

◆ move()

void SimpleArray< float >::move	(	int	fromIndex,
		int	toIndex,
		size_t	len
	)

inlineinherited

Copies values within an array.

Copies length values starting from index fromIndex to locations starting with index toIndex

Parameters

[in]	fromIndex	the first element to copy
[in]	toIndex	the destination of the first element
[in]	len	the number of elements to copy

Definition at line 124 of file SimpleArray.h.

◆ multiply() [1/4]

void FloatArray::multiply ( float scalar )

inherited

Array-scalar multiplication.

Multiplies the values in the array by scalar.

Parameters

scalar to be multiplied with the array elements

Definition at line 312 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ multiply() [2/4]

void FloatArray::multiply	(	float	scalar,
		FloatArray	destination
	)

inherited

Array-scalar multiplication.

Multiplies the values in the array by scalar.

Parameters

scalar	to be subtracted from the array
destination	the destination array

Definition at line 321 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ multiply() [3/4]

void FloatArray::multiply ( FloatArray operand2 )

inherited

Element-wise multiplication between arrays.

Multiplies each element in the array by the corresponding element in operand2.

Parameters

operand2 second operand for the sum

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 307 of file FloatArray.cpp.

References FloatArray::multiply().

◆ multiply() [4/4]

void FloatArray::multiply	(	FloatArray	operand2,
		FloatArray	destination
	)

inherited

Element-wise multiplication between arrays.

Sets each element in destination to the product of the corresponding element of the array and operand2

Parameters

[in]	operand2	second operand for the product
[out]	destination	the destination array

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 290 of file FloatArray.cpp.

References ASSERT, SimpleArray< T >::data, SimpleArray< float >::data, SimpleArray< float >::size, and SimpleArray< T >::size.

Referenced by MorphingOscillator::generate(), PolyBlepOscillator::generate(), PolyBlepOscillator::getSamples(), AudioBuffer::multiply(), FloatArray::multiply(), StereoFeedbackProcessor::process(), PingPongFeedbackProcessor::process(), FourierPitchDetector::process(), DryWetSignalProcessor< Processor >::process(), and FeedbackSignalProcessor< Processor >::process().

◆ negate() [1/2]

void FloatArray::negate ( )

inlineinherited

Negate the array.

Sets each element in the array to its opposite.

Definition at line 127 of file FloatArray.h.

◆ negate() [2/2]

void FloatArray::negate ( FloatArray & destination )

inherited

Negate the array.

Stores the opposite of the elements in the array into destination.

Parameters

[out] destination the destination array.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 330 of file FloatArray.cpp.

References SimpleArray< float >::data, SimpleArray< T >::getData(), and SimpleArray< float >::size.

◆ noise() [1/2]

void FloatArray::noise ( )

inherited

Random values Fills the array with random values in the range [-1, 1)

Definition at line 340 of file FloatArray.cpp.

◆ noise() [2/2]

void FloatArray::noise	(	float	min,
		float	max
	)

inherited

Random values in range.

Fills the array with random values in the range [min, max)

Parameters

min	minimum value in the range
max	maximum value in the range

Definition at line 344 of file FloatArray.cpp.

References SimpleArray< float >::data, max, min, randf(), and SimpleArray< float >::size.

◆ operator float *()

SimpleArray< float >::operator float * ( )

inlineinherited

Casting operator to T*.

Returns: a T* pointer to the data stored in the Array

Definition at line 157 of file SimpleArray.h.

◆ process() [1/2]

float Window::process ( float input )

inlinevirtual

Reimplemented from SignalProcessor.

Definition at line 41 of file Window.h.

References SimpleArray< float >::getData(), and SimpleArray< float >::getSize().

◆ process() [2/2]

void Window::process	(	FloatArray	input,
		FloatArray	output
	)

inlinevirtual

Reimplemented from SignalProcessor.

Definition at line 47 of file Window.h.

References applyWindow(), SimpleArray< float >::getData(), and SimpleArray< float >::getSize().

◆ ramp()

void FloatArray::ramp	(	float	from,
		float	to
	)

inherited

Create a linear ramp from one value to another.

Interpolates all samples in the FloatArray between the endpoints from to to.

Definition at line 432 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by applyTriangularWindow(), and triangular().

◆ reciprocal() [1/2]

void FloatArray::reciprocal ( )

inlineinherited

Reciprocal of the array, in-place version.

Sets each element in the array to its reciprocal.

Definition at line 111 of file FloatArray.h.

◆ reciprocal() [2/2]

void FloatArray::reciprocal ( FloatArray & destination )

inherited

Reciprocal of the array.

Stores the reciprocal of the elements in the array into destination.

Parameters

[out] destination the destination array.

Definition at line 107 of file FloatArray.cpp.

References SimpleArray< float >::data, SimpleArray< float >::getData(), and SimpleArray< float >::getSize().

◆ rectangular()

static void Window::rectangular	(	float *	window,
		int	size
	)

inlinestatic

Definition at line 83 of file Window.h.

References SimpleArray< float >::size, and window().

Referenced by window().

◆ rectify() [1/2]

void FloatArray::rectify ( )

inlineinherited

Absolute value of the array, in-place version.

Sets each element in the array to its absolute value.

Definition at line 83 of file FloatArray.h.

◆ rectify() [2/2]

void FloatArray::rectify ( FloatArray & destination )

inherited

Absolute value of the array.

Stores the absolute value of the elements in the array into destination.

Parameters

[out] destination the destination array.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 77 of file FloatArray.cpp.

References SimpleArray< float >::data, SimpleArray< T >::getData(), SimpleArray< T >::getSize(), min, and SimpleArray< float >::size.

◆ reverse() [1/2]

void FloatArray::reverse ( )

inherited

Reverse the array.

Reverses the order of the elements in the array.

Definition at line 99 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by FloatArray::reverse().

◆ reverse() [2/2]

void FloatArray::reverse ( FloatArray & destination )

inherited

Reverse the array Copies the elements of the array in reversed order into destination.

Parameters

[out] destination the destination array.

Definition at line 89 of file FloatArray.cpp.

References SimpleArray< float >::data, FloatArray::reverse(), and SimpleArray< float >::size.

Referenced by FloatArray::correlateInitialized().

◆ scale() [1/2]

void FloatArray::scale	(	float	from,
		float	to
	)

inlineinherited

In-place scale.

Definition at line 374 of file FloatArray.h.

References FloatArray::scale().

◆ scale() [2/2]

void FloatArray::scale	(	float	from,
		float	to,
		FloatArray	destination
	)

inherited

Scale all values along a linear ramp from one value to another.

Definition at line 440 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by CrossFadingCircularBuffer< T >::delay(), and FloatArray::scale().

◆ setAll()

void FloatArray::setAll ( float value )

inherited

Set all the values in the array.

Sets all the elements of the array to value.

Parameters

[in] value all the elements are set to this value.

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 220 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

Referenced by FloatArray::clear(), FloatArray::correlate(), InterpolatingSignalGenerator< im >::generate(), and SimpleMovingAverage::set().

◆ setElement()

void SimpleArray< float >::setElement	(	size_t	index,
		T	value
	)

inlineinherited

Set a single value in the array.

Definition at line 50 of file SimpleArray.h.

◆ sine()

static void Window::sine	(	float *	window,
		int	size
	)

inlinestatic

Definition at line 101 of file Window.h.

References M_PI, SimpleArray< float >::size, and window().

Referenced by window().

◆ softclip() [1/2]

void FloatArray::softclip ( )

inlineinherited

Applies a cubic soft-clip algorithm to all elements in the array which limits them to the range [-1, 1] In-place version.

Definition at line 209 of file FloatArray.h.

◆ softclip() [2/2]

void FloatArray::softclip ( FloatArray destination )

inherited

Applies a cubic soft-clip algorithm to all elements in the array which limits them to the range [-1, 1].

Parameters

[out] destination the destination array

Definition at line 454 of file FloatArray.cpp.

References clamp, SimpleArray< float >::data, and SimpleArray< float >::size.

◆ subArray()

FloatArray FloatArray::subArray	(	int	offset,
		size_t	length
	)

inherited

A subset of the array.

Returns a array that points to subset of the memory used by the original array.

Parameters

[in]	offset	the first element of the subset.
[in]	length	the number of elments in the new FloatArray.

Returns: the newly created FloatArray.

Remarks: no memory is allocated by this method. The memory is still shared with the original array. The memory should not be de-allocated elsewhere (e.g.: by calling FloatArray::destroy() on the original FloatArray) as long as the FloatArray returned by this method is still in use.; Calling FloatArray::destroy() on a FloatArray instance created with this method might cause an exception.

Definition at line 215 of file FloatArray.cpp.

References ASSERT, SimpleArray< float >::data, FloatArray::FloatArray(), and SimpleArray< float >::size.

Referenced by FourierPitchDetector::computeFrequency().

◆ subtract() [1/3]

void FloatArray::subtract ( float scalar )

inherited

Array-scalar subtraction.

Subtracts scalar from the values in the array.

Parameters

scalar to be subtracted from the array

Definition at line 284 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ subtract() [2/3]

void FloatArray::subtract ( FloatArray operand2 )

inherited

Element-wise difference between arrays.

Subtracts from each element of the array the corresponding element in operand2.

Parameters

[in] operand2 second operand for the subtraction

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 279 of file FloatArray.cpp.

References FloatArray::subtract().

◆ subtract() [3/3]

void FloatArray::subtract	(	FloatArray	operand2,
		FloatArray	destination
	)

inherited

Element-wise difference between arrays.

Sets each element in destination to the difference between the corresponding element of the array and operand2

Parameters

[in]	operand2	second operand for the subtraction
[out]	destination	the destination array

Note: When built for ARM Cortex-M processor series, this method uses the optimized CMSIS library

Definition at line 263 of file FloatArray.cpp.

References ASSERT, SimpleArray< T >::data, SimpleArray< float >::data, SimpleArray< float >::size, and SimpleArray< T >::size.

Referenced by FloatArray::subtract().

◆ tanh() [1/2]

void FloatArray::tanh ( )

inlineinherited

In-place tanh.

Definition at line 386 of file FloatArray.h.

◆ tanh() [2/2]

void FloatArray::tanh ( FloatArray destination )

inherited

Apply tanh to each element in the array.

Definition at line 461 of file FloatArray.cpp.

References SimpleArray< float >::data, and SimpleArray< float >::size.

◆ triangular()

static void Window::triangular	(	float *	window,
		int	size
	)

inlinestatic

Definition at line 106 of file Window.h.

References FloatArray::ramp(), SimpleArray< float >::size, and window().

Referenced by window().

◆ welch()

static void Window::welch	(	float *	window,
		int	size
	)

inlinestatic

Definition at line 95 of file Window.h.

References SimpleArray< float >::size, and window().

Referenced by window().

◆ window()

static void Window::window	(	WindowType	type,
		float *	window,
		int	size
	)

inlinestatic

Definition at line 59 of file Window.h.

References hamming(), HammingWindow, hann(), HanningWindow, HannWindow, rectangular(), RectangularWindow, sine(), SineWindow, SimpleArray< float >::size, triangular(), TriangularWindow, welch(), and WelchWindow.

Referenced by applyWindow(), create(), hamming(), hann(), rectangular(), sine(), triangular(), and welch().

Field Documentation

◆ data

float * SimpleArray< float >::data

protectedinherited

Definition at line 16 of file SimpleArray.h.

◆ size

size_t SimpleArray< float >::size

protectedinherited

Definition at line 17 of file SimpleArray.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ WindowType

Member Enumeration Documentation

◆ WindowType

Constructor & Destructor Documentation

◆ Window() [1/2]

◆ Window() [2/2]

Member Function Documentation

◆ add() [1/4]

◆ add() [2/4]

◆ add() [3/4]

◆ add() [4/4]

◆ apply() [1/2]

◆ apply() [2/2]

◆ applyTriangularWindow() [1/2]

◆ applyTriangularWindow() [2/2]

◆ applyWindow() [1/2]

◆ applyWindow() [2/2]

◆ clear()

◆ clip() [1/3]

◆ clip() [2/3]

◆ clip() [3/3]

◆ convolve() [1/2]

◆ convolve() [2/2]

◆ copy()

◆ copyFrom()

◆ copyTo()

◆ correlate()

◆ correlateInitialized()

◆ create() [1/2]

◆ create() [2/2]

◆ decibelToGain()

◆ destroy()

◆ equals()

◆ gainToDecibel()

◆ getData()

◆ getElement()

◆ getMax()

◆ getMaxIndex()

◆ getMaxValue()

◆ getMean()

◆ getMin()

◆ getMinIndex()

◆ getMinValue()

◆ getPower()

◆ getRms()

◆ getSize()

◆ getStandardDeviation()

◆ getSum()

◆ getVariance()

◆ hamming()

◆ hann()

◆ insert() [1/2]

◆ insert() [2/2]

◆ isEmpty()

◆ move()

◆ multiply() [1/4]

◆ multiply() [2/4]

◆ multiply() [3/4]

◆ multiply() [4/4]

◆ negate() [1/2]

◆ negate() [2/2]

◆ noise() [1/2]

◆ noise() [2/2]

◆ operator float *()

◆ process() [1/2]

◆ process() [2/2]

◆ ramp()

◆ reciprocal() [1/2]

◆ reciprocal() [2/2]

◆ rectangular()

◆ rectify() [1/2]

◆ rectify() [2/2]

◆ reverse() [1/2]

◆ reverse() [2/2]
