Base class for a value that can be set, updated and retrieved (get). More...

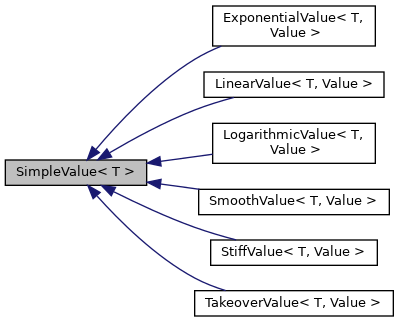

Inheritance diagram for SimpleValue< T >:

[legend]

Public Member Functions
const float	DEFAULT_DELTA

const int	DEFAULT_DELTA

const float	DEFAULT_DELTA

const int	DEFAULT_DELTA

const float	DEFAULT_EXP_C

const int	DEFAULT_EXP_C

const float	DEFAULT_EXP_C

const int	DEFAULT_EXP_C

const float	DEFAULT_EXP_K

const int	DEFAULT_EXP_K

const float	DEFAULT_EXP_K

const int	DEFAULT_EXP_K

const float	DEFAULT_LAMBDA

const int	DEFAULT_LAMBDA

const float	DEFAULT_LAMBDA

const int	DEFAULT_LAMBDA

const float	DEFAULT_LOG_C

const int	DEFAULT_LOG_C

const float	DEFAULT_LOG_C

const int	DEFAULT_LOG_C

const float	DEFAULT_LOG_K

const int	DEFAULT_LOG_K

const float	DEFAULT_LOG_K

const int	DEFAULT_LOG_K

T	get ()

	operator T ()

SimpleValue< T > &	operator*= (const T &other)

SimpleValue< T > &	operator+= (const T &other)

SimpleValue< T > &	operator-= (const T &other)

SimpleValue< T > &	operator/= (const T &other)

SimpleValue< T > &	operator= (const T &other)

void	reset (T x)

	SimpleValue ()

	SimpleValue (const SimpleValue< T > &other)

	SimpleValue (T value)

void	update (T x)

Static Public Attributes
static const T	DEFAULT_DELTA

static const T	DEFAULT_EXP_C

static const T	DEFAULT_EXP_K

static const T	DEFAULT_LAMBDA

static const T	DEFAULT_LOG_C

static const T	DEFAULT_LOG_K

Protected Attributes
T	value

Detailed Description

template<typename T>
class SimpleValue< T >

Base class for a value that can be set, updated and retrieved (get).

Used to selectively add smoothing, hysteresis and ranging to floats and ints. For absolute value updates use the = assignment operator, or update(). For relative value updates use the += and/or -= assignment operators. For value scaling use the *= and/or /= assignment operators.

Definition at line 12 of file SimpleValue.h.

Constructor & Destructor Documentation

◆ SimpleValue() [1/3]

template<typename T >

SimpleValue< T >::SimpleValue ( )

inline

Definition at line 16 of file SimpleValue.h.

◆ SimpleValue() [2/3]

template<typename T >

SimpleValue< T >::SimpleValue ( T value )

inline

Definition at line 17 of file SimpleValue.h.

◆ SimpleValue() [3/3]

template<typename T >

SimpleValue< T >::SimpleValue ( const SimpleValue< T > & other )

inline

Definition at line 18 of file SimpleValue.h.

Member Function Documentation

◆ DEFAULT_DELTA() [1/4]

const float SimpleValue< float >::DEFAULT_DELTA

Definition at line 11 of file SimpleValue.cpp.

◆ DEFAULT_DELTA() [2/4]

const int SimpleValue< int >::DEFAULT_DELTA

Definition at line 17 of file SimpleValue.cpp.

◆ DEFAULT_DELTA() [3/4]

const float SimpleValue< float >::DEFAULT_DELTA

Definition at line 61 of file SimpleValue.h.

◆ DEFAULT_DELTA() [4/4]

const int SimpleValue< int >::DEFAULT_DELTA

Definition at line 67 of file SimpleValue.h.

◆ DEFAULT_EXP_C() [1/4]

const float SimpleValue< float >::DEFAULT_EXP_C

Definition at line 12 of file SimpleValue.cpp.

◆ DEFAULT_EXP_C() [2/4]

const int SimpleValue< int >::DEFAULT_EXP_C

Definition at line 18 of file SimpleValue.cpp.

◆ DEFAULT_EXP_C() [3/4]

const float SimpleValue< float >::DEFAULT_EXP_C

Definition at line 62 of file SimpleValue.h.

◆ DEFAULT_EXP_C() [4/4]

const int SimpleValue< int >::DEFAULT_EXP_C

Definition at line 68 of file SimpleValue.h.

◆ DEFAULT_EXP_K() [1/4]

const float SimpleValue< float >::DEFAULT_EXP_K

Definition at line 13 of file SimpleValue.cpp.

◆ DEFAULT_EXP_K() [2/4]

const int SimpleValue< int >::DEFAULT_EXP_K

Definition at line 19 of file SimpleValue.cpp.

◆ DEFAULT_EXP_K() [3/4]

const float SimpleValue< float >::DEFAULT_EXP_K

Definition at line 63 of file SimpleValue.h.

◆ DEFAULT_EXP_K() [4/4]

const int SimpleValue< int >::DEFAULT_EXP_K

Definition at line 69 of file SimpleValue.h.

◆ DEFAULT_LAMBDA() [1/4]

const float SimpleValue< float >::DEFAULT_LAMBDA

Definition at line 10 of file SimpleValue.cpp.

◆ DEFAULT_LAMBDA() [2/4]

const int SimpleValue< int >::DEFAULT_LAMBDA

Definition at line 16 of file SimpleValue.cpp.

◆ DEFAULT_LAMBDA() [3/4]

const float SimpleValue< float >::DEFAULT_LAMBDA

Definition at line 60 of file SimpleValue.h.

◆ DEFAULT_LAMBDA() [4/4]

const int SimpleValue< int >::DEFAULT_LAMBDA

Definition at line 66 of file SimpleValue.h.

◆ DEFAULT_LOG_C() [1/4]

const float SimpleValue< float >::DEFAULT_LOG_C

Definition at line 14 of file SimpleValue.cpp.

◆ DEFAULT_LOG_C() [2/4]

const int SimpleValue< int >::DEFAULT_LOG_C

Definition at line 20 of file SimpleValue.cpp.

◆ DEFAULT_LOG_C() [3/4]

const float SimpleValue< float >::DEFAULT_LOG_C

Definition at line 64 of file SimpleValue.h.

◆ DEFAULT_LOG_C() [4/4]

const int SimpleValue< int >::DEFAULT_LOG_C

Definition at line 70 of file SimpleValue.h.

◆ DEFAULT_LOG_K() [1/4]

const float SimpleValue< float >::DEFAULT_LOG_K

Definition at line 15 of file SimpleValue.cpp.

◆ DEFAULT_LOG_K() [2/4]

const int SimpleValue< int >::DEFAULT_LOG_K

Definition at line 21 of file SimpleValue.cpp.

◆ DEFAULT_LOG_K() [3/4]

const float SimpleValue< float >::DEFAULT_LOG_K

Definition at line 65 of file SimpleValue.h.

◆ DEFAULT_LOG_K() [4/4]

const int SimpleValue< int >::DEFAULT_LOG_K

Definition at line 71 of file SimpleValue.h.

◆ get()

template<typename T >

T SimpleValue< T >::get ( )

inline

Definition at line 19 of file SimpleValue.h.

References SimpleValue< T >::value.

Referenced by SimpleValue< T >::operator T().

◆ operator T()

template<typename T >

SimpleValue< T >::operator T ( )

inline

Definition at line 48 of file SimpleValue.h.

References SimpleValue< T >::get().

◆ operator*=()

template<typename T >

SimpleValue<T>& SimpleValue< T >::operator*= ( const T & other )

inline

Definition at line 40 of file SimpleValue.h.

References SimpleValue< T >::update(), and SimpleValue< T >::value.

◆ operator+=()

template<typename T >

SimpleValue<T>& SimpleValue< T >::operator+= ( const T & other )

inline

Definition at line 32 of file SimpleValue.h.

References SimpleValue< T >::update(), and SimpleValue< T >::value.

◆ operator-=()

template<typename T >

SimpleValue<T>& SimpleValue< T >::operator-= ( const T & other )

inline

Definition at line 36 of file SimpleValue.h.

References SimpleValue< T >::update(), and SimpleValue< T >::value.

◆ operator/=()

template<typename T >

SimpleValue<T>& SimpleValue< T >::operator/= ( const T & other )

inline

Definition at line 44 of file SimpleValue.h.

References SimpleValue< T >::update(), and SimpleValue< T >::value.

◆ operator=()

template<typename T >

SimpleValue<T>& SimpleValue< T >::operator= ( const T & other )

inline

Definition at line 28 of file SimpleValue.h.

References SimpleValue< T >::update().

◆ reset()

template<typename T >

void SimpleValue< T >::reset ( T x )

inline

Definition at line 22 of file SimpleValue.h.

References SimpleValue< T >::value.

◆ update()

template<typename T >

void SimpleValue< T >::update ( T x )

inline

Definition at line 25 of file SimpleValue.h.

References SimpleValue< T >::value.

Referenced by SimpleValue< T >::operator*=(), SimpleValue< T >::operator+=(), SimpleValue< T >::operator-=(), SimpleValue< T >::operator/=(), and SimpleValue< T >::operator=().

Field Documentation

◆ DEFAULT_DELTA

template<typename T >

const T SimpleValue< T >::DEFAULT_DELTA

static

Definition at line 52 of file SimpleValue.h.

◆ DEFAULT_EXP_C

template<typename T >

const T SimpleValue< T >::DEFAULT_EXP_C

static

Definition at line 53 of file SimpleValue.h.

◆ DEFAULT_EXP_K

template<typename T >

const T SimpleValue< T >::DEFAULT_EXP_K

static

Definition at line 54 of file SimpleValue.h.

◆ DEFAULT_LAMBDA

template<typename T >

const T SimpleValue< T >::DEFAULT_LAMBDA

static

Definition at line 51 of file SimpleValue.h.

◆ DEFAULT_LOG_C

template<typename T >

const T SimpleValue< T >::DEFAULT_LOG_C

static

Definition at line 55 of file SimpleValue.h.

◆ DEFAULT_LOG_K

template<typename T >

const T SimpleValue< T >::DEFAULT_LOG_K

static

Definition at line 56 of file SimpleValue.h.

◆ value

template<typename T >

T SimpleValue< T >::value

protected

Definition at line 14 of file SimpleValue.h.

Referenced by SimpleValue< T >::get(), SimpleValue< T >::operator*=(), SimpleValue< T >::operator+=(), SimpleValue< T >::operator-=(), SimpleValue< T >::operator/=(), SimpleValue< T >::reset(), TakeoverValue< T, Value >::setLocked(), and SimpleValue< T >::update().

The documentation for this class was generated from the following file:

SimpleValue.h
