InterpolatingCircularFloatBuffer< im > Class Template Reference

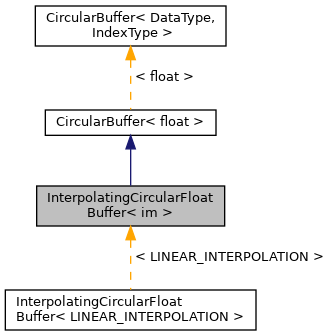

Inheritance diagram for InterpolatingCircularFloatBuffer< im >:
Inheritance graph
[legend]
Collaboration diagram for InterpolatingCircularFloatBuffer< im >:
Collaboration graph
[legend]

Public Member Functions

void clear ()

void delay (float *in, float *out, size_t len, float beginDelay, float endDelay)
 Write to buffer and read with a delay that ramps up or down from. More...

void delay (float *in, float *out, size_t len, float readDelay)
 Write to buffer and read with a fractional delay. More...

void delay (float *in, float *out, size_t len, int delay_samples)
 Write to buffer and read with a delay. More...

void delay (float *out, size_t len, float beginDelay, float endDelay)
 Read with a delay that ramps up or down from. More...

void delay (float *out, size_t len, float delay)
 Read with a fractional delay. More...

size_t getContiguousReadCapacity () const

size_t getContiguousWriteCapacity () const

float * getData ()

size_t getDelay () const
 Get the read index expressed as delay behind the write index. More...

float getFractionalDelay ()

size_t getReadCapacity () const

float * getReadHead ()

size_t getReadIndex ()

size_t getSize () const

size_t getWriteCapacity () const

float * getWriteHead ()

size_t getWriteIndex ()

 InterpolatingCircularFloatBuffer ()

 InterpolatingCircularFloatBuffer (float *data, size_t size)

bool isEmpty () const

bool isFull () const

void moveReadHead (int32_t samples)

void moveWriteHead (int32_t samples)

void overdub (float c)

void overdubAt (size_t index, float value)

float read ()

void read (float *dst, size_t len)

void read (float *out, size_t len, float startpos, float rate)
 Interpolated read at fractional rate. More...

float readAt (float index)
 Interpolated read at sub-sample index. More...

float readAt (float index)

float readAt (float index)

float readAt (float index)

float readAt (float index)

float readAt (float index)

float readAt (float index)

float readAt (size_t index)

void reset ()

void setAll (const float value)

void setData (float *data, size_t len)

void setDelay (int samples)
 Set the read index. More...

void setReadIndex (size_t pos)

void setWriteIndex (size_t pos)

void skipUntilLast (char c)

void write (float *source, size_t len)

void write (float c)

void writeAt (float index, float value)
 Interpolated write at sub-sample index. More...

void writeAt (size_t index, float value)


Static Public Member Functions

static InterpolatingCircularFloatBuffer< im > * create (size_t len)

static void destroy (CircularBuffer< float > *obj)

static void destroy (InterpolatingCircularFloatBuffer< im > *obj)


Protected Attributes

float * data

float delay_samples = 0

bool empty

size_t readpos

size_t size

size_t writepos


Detailed Description

template<InterpolationMethod im = LINEAR_INTERPOLATION>
class InterpolatingCircularFloatBuffer< im >

Definition at line 9 of file InterpolatingCircularBuffer.h.

Constructor & Destructor Documentation

◆ InterpolatingCircularFloatBuffer() [1/2]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
InterpolatingCircularFloatBuffer< im >::InterpolatingCircularFloatBuffer ( )
inline

Definition at line 13 of file InterpolatingCircularBuffer.h.

◆ InterpolatingCircularFloatBuffer() [2/2]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
InterpolatingCircularFloatBuffer< im >::InterpolatingCircularFloatBuffer ( float *  data,
size_t  size
)
inline

Definition at line 14 of file InterpolatingCircularBuffer.h.

Member Function Documentation

◆ clear()

void CircularBuffer< float , size_t >::clear ( )
inlineinherited

Definition at line 220 of file CircularBuffer.h.

◆ create()

template<InterpolationMethod im = LINEAR_INTERPOLATION>
static InterpolatingCircularFloatBuffer<im>* InterpolatingCircularFloatBuffer< im >::create ( size_t  len)
inlinestatic

Definition at line 98 of file InterpolatingCircularBuffer.h.

References CircularBuffer< DataType, IndexType >::clear().

◆ delay() [1/5]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
void InterpolatingCircularFloatBuffer< im >::delay ( float *  in,
float *  out,
size_t  len,
float  beginDelay,
float  endDelay
)
inline

Write to buffer and read with a delay that ramps up or down from.

Parameters
beginDelayto
endDelay
Note
input buffer length is added to delay times

Definition at line 93 of file InterpolatingCircularBuffer.h.

References InterpolatingCircularFloatBuffer< im >::delay(), and CircularBuffer< float >::write().

◆ delay() [2/5]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
void InterpolatingCircularFloatBuffer< im >::delay ( float *  in,
float *  out,
size_t  len,
float  readDelay
)
inline

Write to buffer and read with a fractional delay.

Note
input buffer length is added to delay time

Definition at line 66 of file InterpolatingCircularBuffer.h.

References InterpolatingCircularFloatBuffer< im >::delay(), and CircularBuffer< float >::write().

◆ delay() [3/5]

void CircularBuffer< float , size_t >::delay ( float *  in,
float *  out,
size_t  len,
int  delay_samples
)
inlineinherited

Write to buffer and read with a delay.

Definition at line 182 of file CircularBuffer.h.

◆ delay() [4/5]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
void InterpolatingCircularFloatBuffer< im >::delay ( float *  out,
size_t  len,
float  beginDelay,
float  endDelay
)
inline

Read with a delay that ramps up or down from.

Parameters
beginDelayto
endDelay

Definition at line 75 of file InterpolatingCircularBuffer.h.

References InterpolatingCircularFloatBuffer< im >::delay_samples, InterpolatingCircularFloatBuffer< im >::readAt(), CircularBuffer< float >::size, and CircularBuffer< float >::writepos.

◆ delay() [5/5]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
void InterpolatingCircularFloatBuffer< im >::delay ( float *  out,
size_t  len,
float  delay
)
inline

Read with a fractional delay.

Definition at line 52 of file InterpolatingCircularBuffer.h.

References InterpolatingCircularFloatBuffer< im >::delay_samples, InterpolatingCircularFloatBuffer< im >::readAt(), CircularBuffer< float >::size, and CircularBuffer< float >::writepos.

Referenced by InterpolatingCircularFloatBuffer< im >::delay().

◆ destroy() [1/2]

static void CircularBuffer< float , size_t >::destroy ( CircularBuffer< float > *  obj)
inlinestaticinherited

Definition at line 230 of file CircularBuffer.h.

◆ destroy() [2/2]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
static void InterpolatingCircularFloatBuffer< im >::destroy ( InterpolatingCircularFloatBuffer< im > *  obj)
inlinestatic

Definition at line 104 of file InterpolatingCircularBuffer.h.

References CircularBuffer< DataType, IndexType >::data.

◆ getContiguousReadCapacity()

size_t CircularBuffer< float , size_t >::getContiguousReadCapacity ( ) const
inlineinherited

Definition at line 203 of file CircularBuffer.h.

◆ getContiguousWriteCapacity()

size_t CircularBuffer< float , size_t >::getContiguousWriteCapacity ( ) const
inlineinherited

Definition at line 196 of file CircularBuffer.h.

◆ getData()

float * CircularBuffer< float , size_t >::getData ( )
inlineinherited

Definition at line 32 of file CircularBuffer.h.

◆ getDelay()

size_t CircularBuffer< float , size_t >::getDelay ( ) const
inlineinherited

Get the read index expressed as delay behind the write index.

Definition at line 175 of file CircularBuffer.h.

◆ getFractionalDelay()

template<InterpolationMethod im = LINEAR_INTERPOLATION>
float InterpolatingCircularFloatBuffer< im >::getFractionalDelay ( )
inline

Definition at line 45 of file InterpolatingCircularBuffer.h.

References InterpolatingCircularFloatBuffer< im >::delay_samples.

◆ getReadCapacity()

size_t CircularBuffer< float , size_t >::getReadCapacity ( ) const
inlineinherited

Definition at line 188 of file CircularBuffer.h.

◆ getReadHead()

float * CircularBuffer< float , size_t >::getReadHead ( )
inlineinherited

Definition at line 155 of file CircularBuffer.h.

◆ getReadIndex()

size_t CircularBuffer< float , size_t >::getReadIndex ( )
inlineinherited

Definition at line 147 of file CircularBuffer.h.

◆ getSize()

size_t CircularBuffer< float , size_t >::getSize ( ) const
inlineinherited

Definition at line 28 of file CircularBuffer.h.

◆ getWriteCapacity()

size_t CircularBuffer< float , size_t >::getWriteCapacity ( ) const
inlineinherited

Definition at line 192 of file CircularBuffer.h.

◆ getWriteHead()

float * CircularBuffer< float , size_t >::getWriteHead ( )
inlineinherited

Definition at line 137 of file CircularBuffer.h.

◆ getWriteIndex()

size_t CircularBuffer< float , size_t >::getWriteIndex ( )
inlineinherited

Definition at line 129 of file CircularBuffer.h.

◆ isEmpty()

bool CircularBuffer< float , size_t >::isEmpty ( ) const
inlineinherited

Definition at line 36 of file CircularBuffer.h.

◆ isFull()

bool CircularBuffer< float , size_t >::isFull ( ) const
inlineinherited

Definition at line 40 of file CircularBuffer.h.

◆ moveReadHead()

void CircularBuffer< float , size_t >::moveReadHead ( int32_t  samples)
inlineinherited

Definition at line 159 of file CircularBuffer.h.

◆ moveWriteHead()

void CircularBuffer< float , size_t >::moveWriteHead ( int32_t  samples)
inlineinherited

Definition at line 141 of file CircularBuffer.h.

◆ overdub()

void CircularBuffer< float , size_t >::overdub ( float  c)
inlineinherited

Definition at line 71 of file CircularBuffer.h.

◆ overdubAt()

void CircularBuffer< float , size_t >::overdubAt ( size_t  index,
float  value
)
inlineinherited

Definition at line 78 of file CircularBuffer.h.

◆ read() [1/3]

float CircularBuffer< float , size_t >::read ( )
inlineinherited

Definition at line 82 of file CircularBuffer.h.

◆ read() [2/3]

void CircularBuffer< float , size_t >::read ( float *  dst,
size_t  len
)
inlineinherited

Definition at line 91 of file CircularBuffer.h.

◆ read() [3/3]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
void InterpolatingCircularFloatBuffer< im >::read ( float *  out,
size_t  len,
float  startpos,
float  rate
)
inline

Interpolated read at fractional rate.

Parameters
rateread speed, in samples/sample

Definition at line 35 of file InterpolatingCircularBuffer.h.

References CircularBuffer< float >::empty, InterpolatingCircularFloatBuffer< im >::readAt(), CircularBuffer< float >::readpos, CircularBuffer< float >::size, and CircularBuffer< float >::writepos.

◆ readAt() [1/8]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
float InterpolatingCircularFloatBuffer< im >::readAt ( float  index)

Interpolated read at sub-sample index.

Returns
a value linearly interpolated at a fractional index

Referenced by InterpolatingCircularFloatBuffer< im >::delay(), InterpolatingWavetableOscillator< im >::getSample(), and InterpolatingCircularFloatBuffer< im >::read().

◆ readAt() [2/8]

float InterpolatingCircularFloatBuffer< NO_INTERPOLATION >::readAt ( float  index)

Definition at line 111 of file InterpolatingCircularBuffer.h.

References CircularBuffer< float >::readAt().

◆ readAt() [3/8]

float InterpolatingCircularFloatBuffer< COSINE_INTERPOLATION >::readAt ( float  index)

Definition at line 136 of file InterpolatingCircularBuffer.h.

References Interpolator::cosine(), and CircularBuffer< float >::readAt().

◆ readAt() [4/8]

float InterpolatingCircularFloatBuffer< CUBIC_3P_INTERPOLATION >::readAt ( float  index)

Definition at line 145 of file InterpolatingCircularBuffer.h.

References Interpolator::cubic(), and CircularBuffer< float >::readAt().

◆ readAt() [5/8]

float InterpolatingCircularFloatBuffer< CUBIC_4P_INTERPOLATION >::readAt ( float  index)

Definition at line 154 of file InterpolatingCircularBuffer.h.

References Interpolator::cubic(), and CircularBuffer< float >::readAt().

◆ readAt() [6/8]

float InterpolatingCircularFloatBuffer< CUBIC_4P_SMOOTH_INTERPOLATION >::readAt ( float  index)

Definition at line 164 of file InterpolatingCircularBuffer.h.

References Interpolator::cubicSmooth(), and CircularBuffer< float >::readAt().

◆ readAt() [7/8]

float InterpolatingCircularFloatBuffer< HERMITE_INTERPOLATION >::readAt ( float  index)

Definition at line 174 of file InterpolatingCircularBuffer.h.

References Interpolator::hermite(), and CircularBuffer< float >::readAt().

◆ readAt() [8/8]

float CircularBuffer< float , size_t >::readAt ( size_t  index)
inlineinherited

Definition at line 106 of file CircularBuffer.h.

◆ reset()

void CircularBuffer< float , size_t >::reset ( )
inlineinherited

Definition at line 215 of file CircularBuffer.h.

◆ setAll()

void CircularBuffer< float , size_t >::setAll ( const float  value)
inlineinherited

Definition at line 210 of file CircularBuffer.h.

◆ setData()

void CircularBuffer< float , size_t >::setData ( float *  data,
size_t  len
)
inlineinherited

Definition at line 23 of file CircularBuffer.h.

◆ setDelay()

void CircularBuffer< float , size_t >::setDelay ( int  samples)
inlineinherited

Set the read index.

Parameters
samplesbehind the write index.

Definition at line 168 of file CircularBuffer.h.

◆ setReadIndex()

void CircularBuffer< float , size_t >::setReadIndex ( size_t  pos)
inlineinherited

Definition at line 151 of file CircularBuffer.h.

◆ setWriteIndex()

void CircularBuffer< float , size_t >::setWriteIndex ( size_t  pos)
inlineinherited

Definition at line 133 of file CircularBuffer.h.

◆ skipUntilLast()

void CircularBuffer< float , size_t >::skipUntilLast ( char  c)
inlineinherited

Definition at line 110 of file CircularBuffer.h.

◆ write() [1/2]

void CircularBuffer< float , size_t >::write ( float *  source,
size_t  len
)
inlineinherited

Definition at line 52 of file CircularBuffer.h.

◆ write() [2/2]

void CircularBuffer< float , size_t >::write ( float  c)
inlineinherited

Definition at line 44 of file CircularBuffer.h.

◆ writeAt() [1/2]

template<InterpolationMethod im = LINEAR_INTERPOLATION>
void InterpolatingCircularFloatBuffer< im >::writeAt ( float  index,
float  value
)

Interpolated write at sub-sample index.

Inserts a value linearly interpolated at a fractional index.

◆ writeAt() [2/2]

void CircularBuffer< float , size_t >::writeAt ( size_t  index,
float  value
)
inlineinherited

Definition at line 67 of file CircularBuffer.h.

Field Documentation

◆ data

float * CircularBuffer< float , size_t >::data
protectedinherited

Definition at line 14 of file CircularBuffer.h.

◆ delay_samples

template<InterpolationMethod im = LINEAR_INTERPOLATION>
float InterpolatingCircularFloatBuffer< im >::delay_samples = 0
protected

Definition at line 11 of file InterpolatingCircularBuffer.h.

Referenced by InterpolatingCircularFloatBuffer< im >::delay(), and InterpolatingCircularFloatBuffer< im >::getFractionalDelay().

◆ empty

bool CircularBuffer< float , size_t >::empty
protectedinherited

Definition at line 18 of file CircularBuffer.h.

◆ readpos

size_t CircularBuffer< float , size_t >::readpos
protectedinherited

Definition at line 17 of file CircularBuffer.h.

◆ size

size_t CircularBuffer< float , size_t >::size
protectedinherited

Definition at line 15 of file CircularBuffer.h.

◆ writepos

size_t CircularBuffer< float , size_t >::writepos
protectedinherited

Definition at line 16 of file CircularBuffer.h.

The documentation for this class was generated from the following file:
